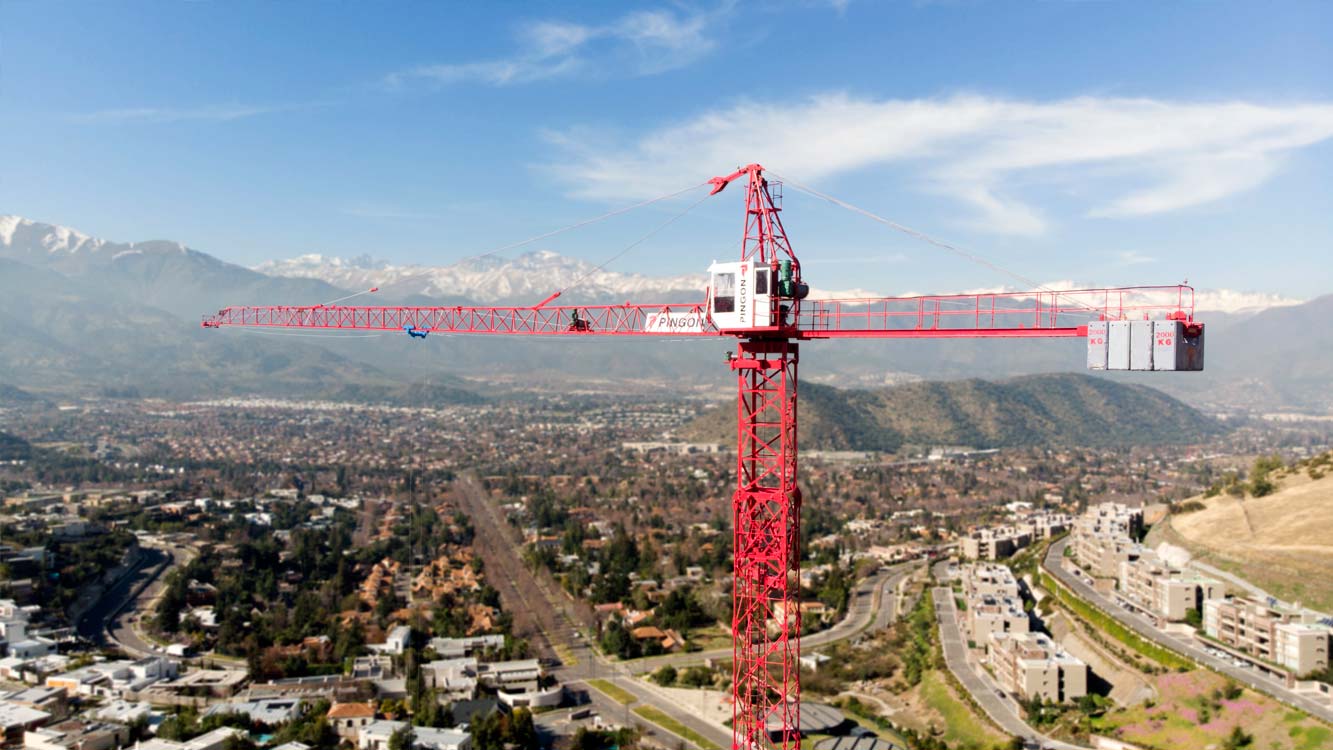

Tower crane PT-500 Range

Jibs of 60 and 63m length

PT-500 Range Series

1,6m width mast sections in panels and jib sections designed with tubular profiles (easy and optimized transport).

Tip Load & Maximum Load: 2.300 / 12.000 Kg.
Jib of 60 y 63 mt. Optional inverter motors.
Modular 3m jib sections optimizing the loading diagram.

More info >

Customize your crane

We adapt the crane to your project requirements to optimize the performance of the machine.

Models

JIB LENGTH (M)

JIB POINT LOADING (KG)

MAXIMUM CAPACITY (KG)

PT-560.8

60

2.000

8.000

PT-560.10

60

2.000

8.000

PT-563.12

63

2.200

12.000

Features

Modular

Great versatility due to the numerous crane configurations.
Assemblies that best suit the conditions of each project. We consider that each project requires some ad-hoc tower crane.
Optimized investment: different models share the same structural component.

Cab

Optimal view of the load and the work.
Greater safety and monitoring of operations and the site.
Spacious and comfortable interior. Fully equipped.

Optimised design

Our cranes can be transported in a cost-effective manner, and provide optimum robustness, durability and performance. We consistently achieve a significant reduction in logistics and transport costs thanks to our panellable structures.

Complete telescoping system

The whole PT range is telescopable.

Safety

We are very strict in our compliance with the current regulations in all the countries where we are present.

European regulation

Quality &constant innovation are fundamental principles in Pingon.
Pingon tower cranes follows the most current European regulations in terms of safety. The range PT cranes, is manufactured in accordance with the European standard EN14439_2006/42/EC_C25 that incorporates several improvements in safety for operators and technicians.
We consider C25 level wind speed classification in out of service conditions).

Assembly and operation

The Pinternal cranes are renowned for ease and agility in both the set-up process and in operation.

Technical range

With an optimised range of models, we cover the majority of residential and civil projects on a global scale.

Delivery times

We produce any series in a very competitive time frame.
